Quattro 4 seater cafeteria unit

Canteen & Cafeteria

Quattro 4 seater cafeteria unit

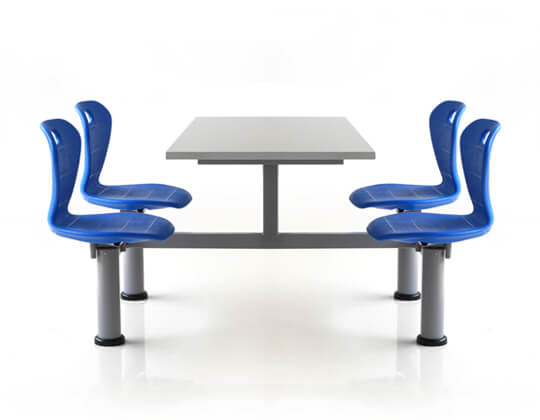

Quattro is the ideal option for canteens and cafeterias looking for easy maintenance and practicality in usage. It is a four-seater integrated unit, comprising a table and four seats with a special auto-return swivel mechanism. It features a robust steel frame, with only  4 posts in contact with the floor, to enable efficient cleaning. There are two models in seat shell designs with colour options: Forma and Puma.

Specifications

Frame and legs robust epoxy-coated steel frame with only four main posts in contact with the floor (for ease of cleaning), which supports a table top and four beam mounted, auto-return swivel seats.

  • Beam¬†the main structural element is the beam, which is made of square steel tubes. It has steel beam brackets and seat supports¬†made of rectangular steel tubes
  • Legs¬†4 round steel tubes

Desk top 25mm particle board pressed with a high pressure top laminate, a bottom balancing laminate and PVC edges. Stone table tops can also be provided.

Seat shells plastic shells are available in two models, Forma and Puma.

Mechanism a special auto-return swivel mechanism is fitted onto each seat shell

Glides fixed plastic glides

Dimensions

Table top area 120 cm x 70 cm

Table top height 80 cm

Overall footprint (including four seats) 120 x 170 cm
